Description

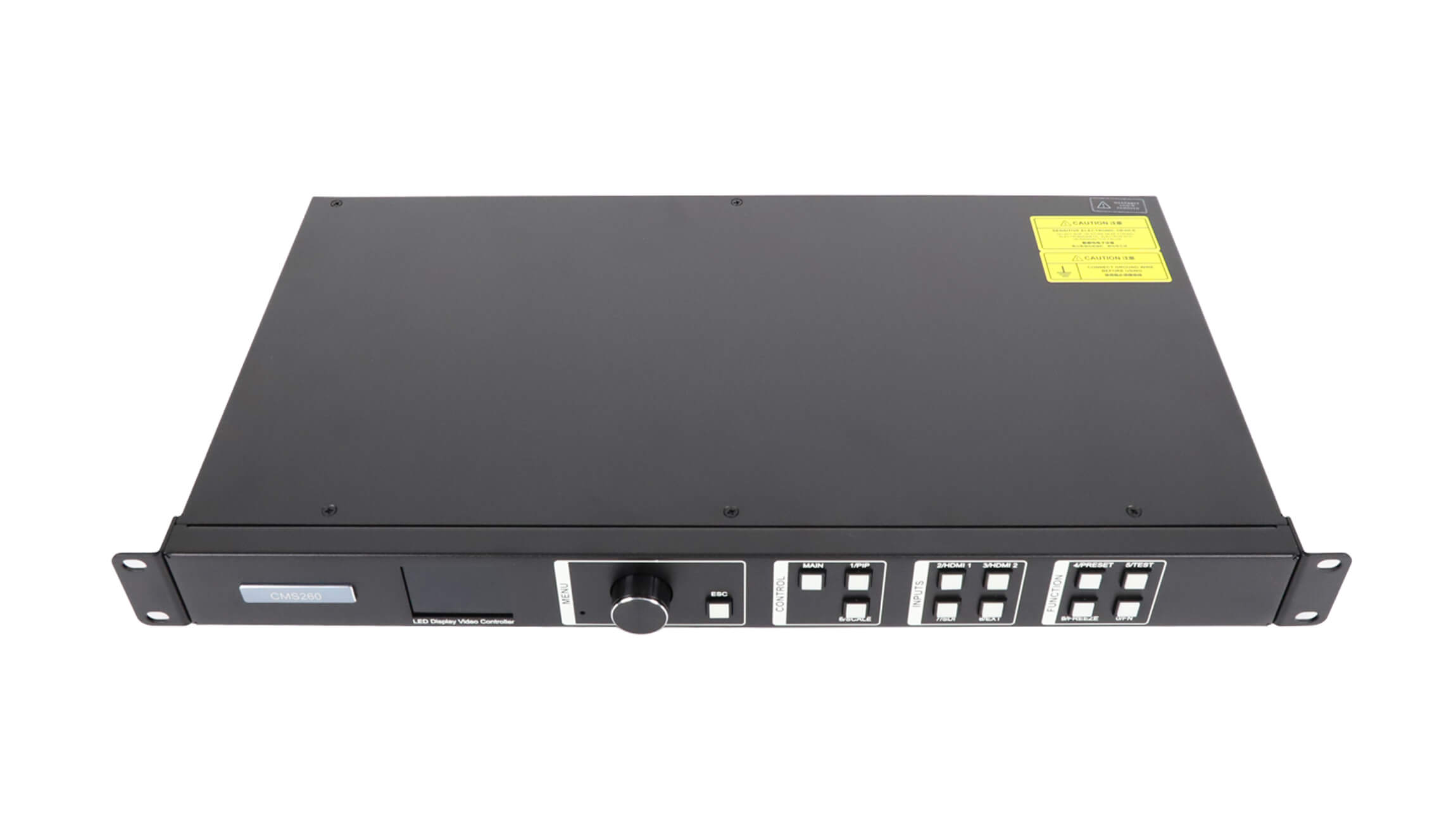

The CMS260 is the new all-in-one controller that integrates video processing and video control into one box. It features 4 Ethernet ports. A CMS260 unit can drive up to 2.6 million pixels, with the maximum output width and height both up to 3840 pixels.
The CMS260 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling and chroma calibration and more, to present you with an excellent image display experience.
Thanks to its powerful video processing and sending capabilities and other outstanding features, the CMS260 can be widely used applications such as rental, stage control systems and fin-pitch LED screens.
Features:

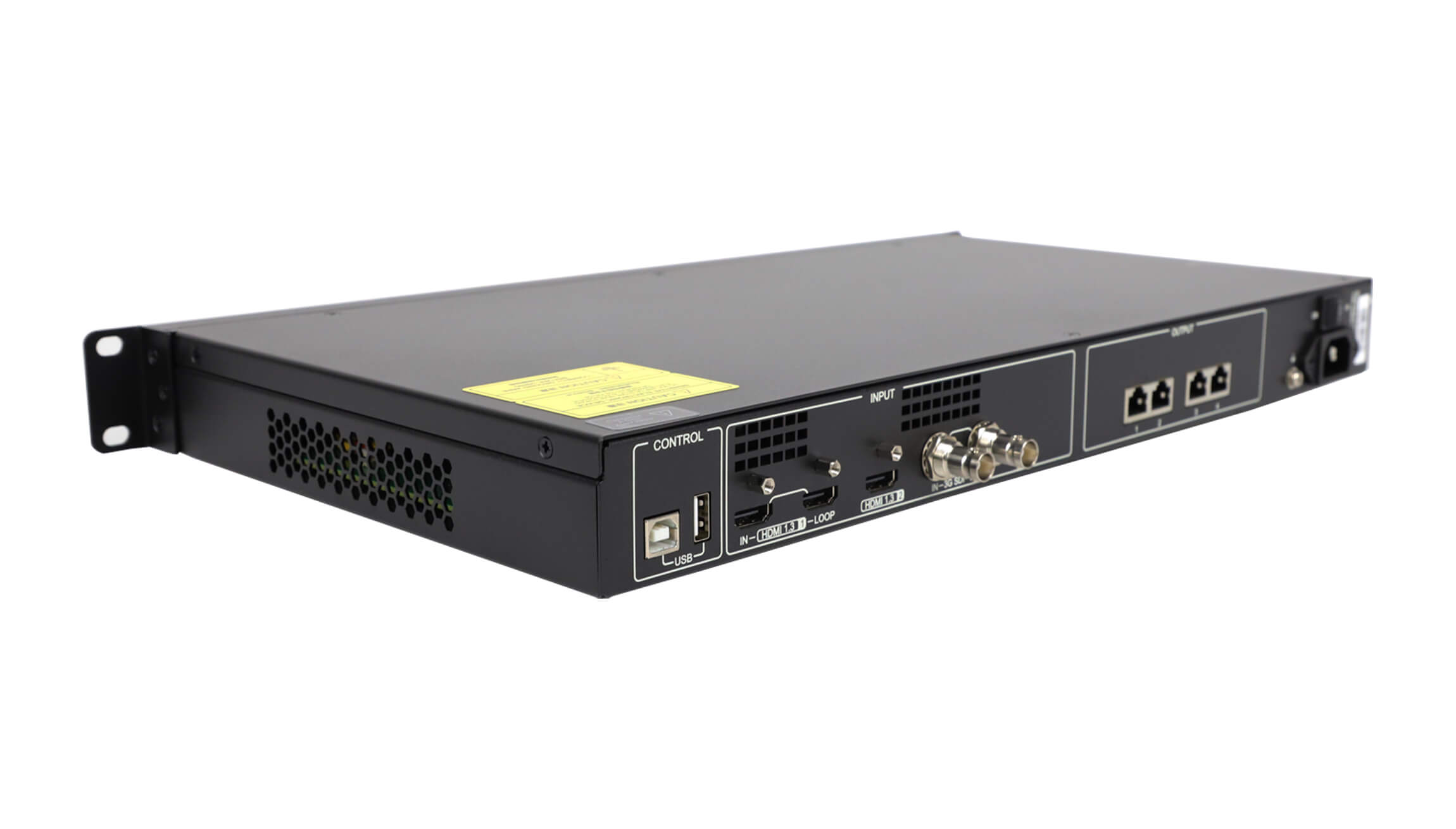

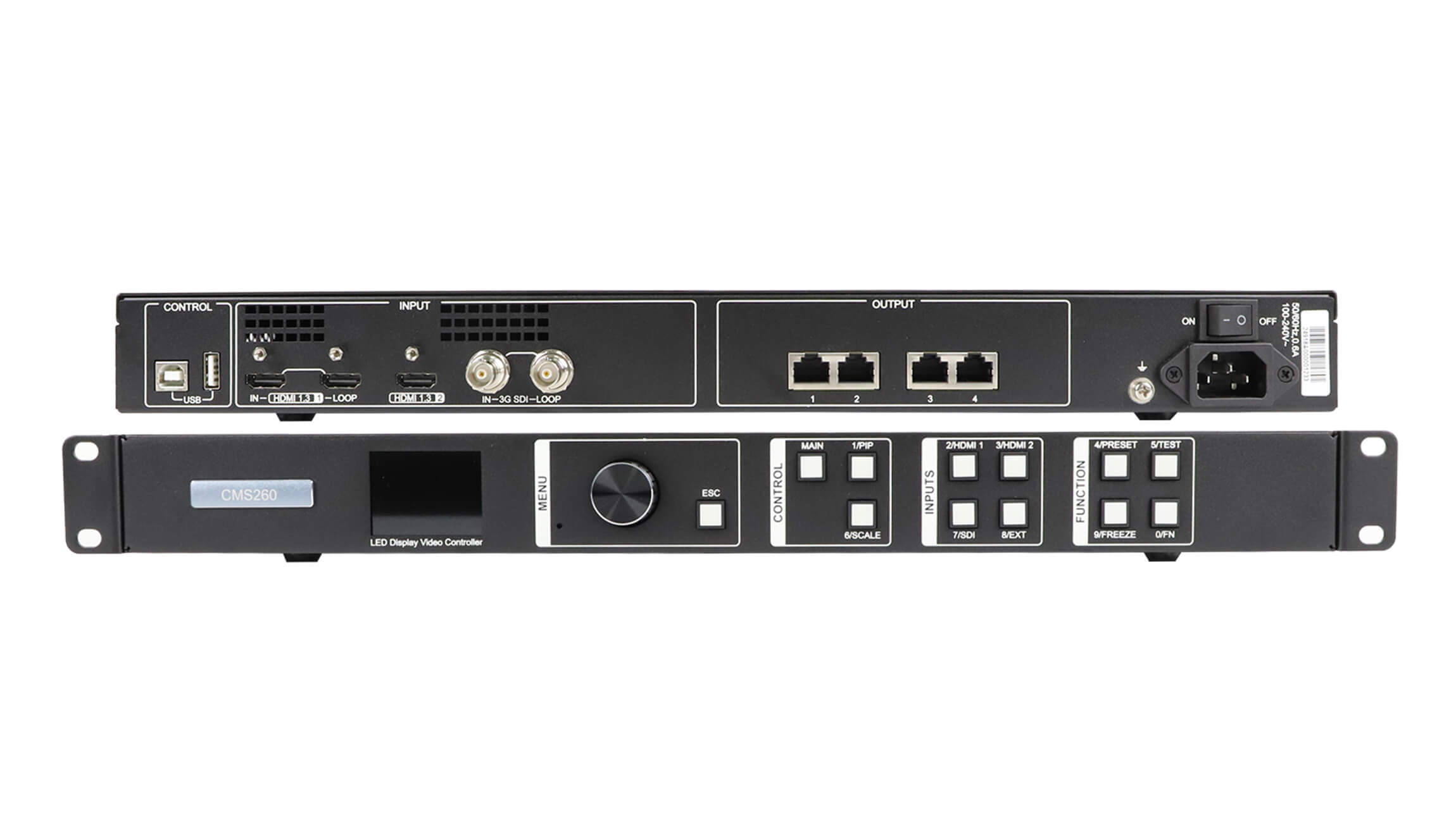

1.Input connectors
− 1x HDMI 1.3 (IN & LOOP)     − 1x HDMI 1.3     − 1x 3G-SDI (IN & LOOP)
2.Output connectors
− 4x Gigabit Ethernet ports
A single device unit drives up to 2.6 million pixels, with a maximum width of 3840 pixels and a maximum height of 3840 pixels.
3.Audio input and output
− Audio input accompanied with an HDMI input source
− Audio output via a multifunction card
− Output volume adjustment supported
4.2x layers
− Adjustable layer size and position     − Adjustable layer priority
5.Output synchronization
An internal input source can be used as the sync source to ensure the output images of all cascaded units in sync.
6.Powerful video processing
− Based on SuperView III image quality processing technologies to provide stepless output scaling
− One-click full screen display
− Free input cropping
7.Easy preset saving and loading
Up to 10 user-defined presets
8.Multiple kinds of hot backup
− Backup between devices     − Backup between Ethernet ports     − Input source hot backup
9.Ethernet port backup test
Test whether the pre-stored images, backup Ethernet ports and devices take effect without plugging and unplugging the Ethernet cables.
10.Up to 4 units cascaded for image mosaic
11.Output image quality management
Brightness, saturation, contrast and hue adjustment
12.Pixel level brightness and chroma calibration
Working with LCT and calibration software to support brightness and chroma calibration on each LED, effectively removing color discrepancies and greatly improving LED display brightness and chroma consistency, allowing for better image quality.
13.Multiple operation modes
